Portrait Landscape Video Wall Processor
Model：G400
GeoBox 4K in / 2K out video wall controller is a pure hardware system compatible with various signal sources, supporting 2–8 monitors per unit. Multiple controllers can be combined for larger walls. It supports up to 8K/1K 30fps or 4K/2K 60fps input, with 2048×1080 or 1920×1200 @60Hz output, plus 90/180/270° rotation. Users can build asymmetric portrait or landscape walls with mixed sizes and aspect ratios, even using standard TVs. No PC or software is required.
Add to inquiry
Detail
For AV integrators, control rooms, events, and retail displays seeking an irregular TV wall without a PC, the G400 is a pure hardware video wall controller that manages 2–8 monitors per unit and scales via cascade. It’s built by VNS, a seasoned video wall processor manufacturer, for 24/7 reliability.
What it solves

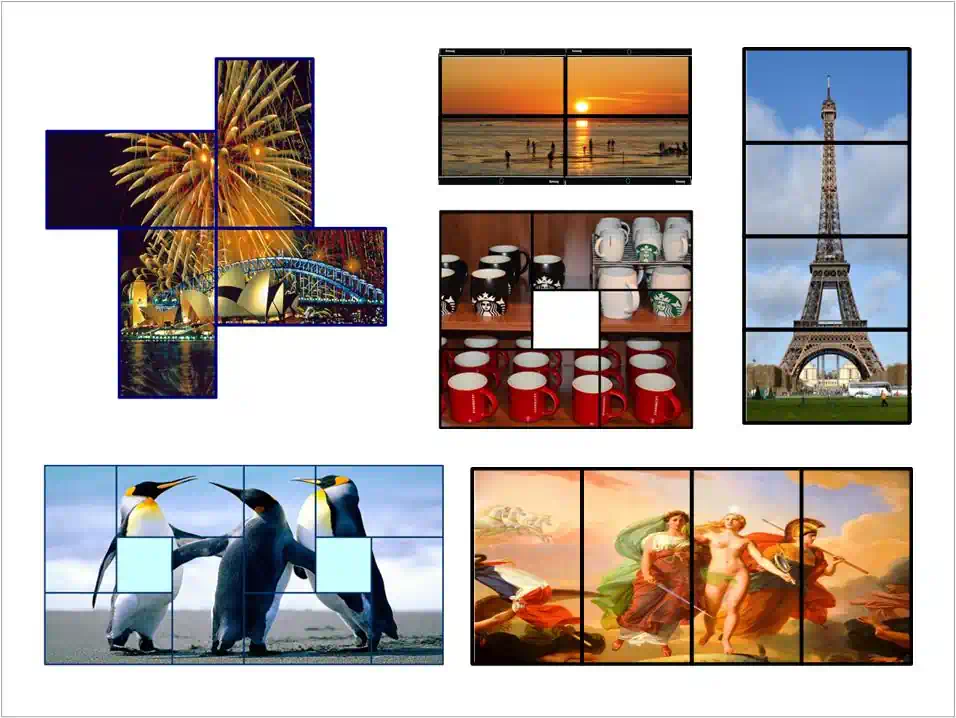

- Build asymmetric video walls with mixed portrait and landscape LCDs, varied sizes, and different aspect ratios—while keeping synchronized outputs with frame lock. Align pixels, crop, rotate (90/180/270), and mirror per display for creative layouts, all without external software or a PC.
Common use cases
- Retail and hospitality can map content across mixed-size displays with bezel compensation and pixel-level alignment up to ±1800 px. Broadcast and control rooms keep feeds frame-synced. Museums and attractions rotate and crop content per screen. Corporate lobbies and digital art deploy a standalone tv wall controller for fast setup.
Key Capabilities

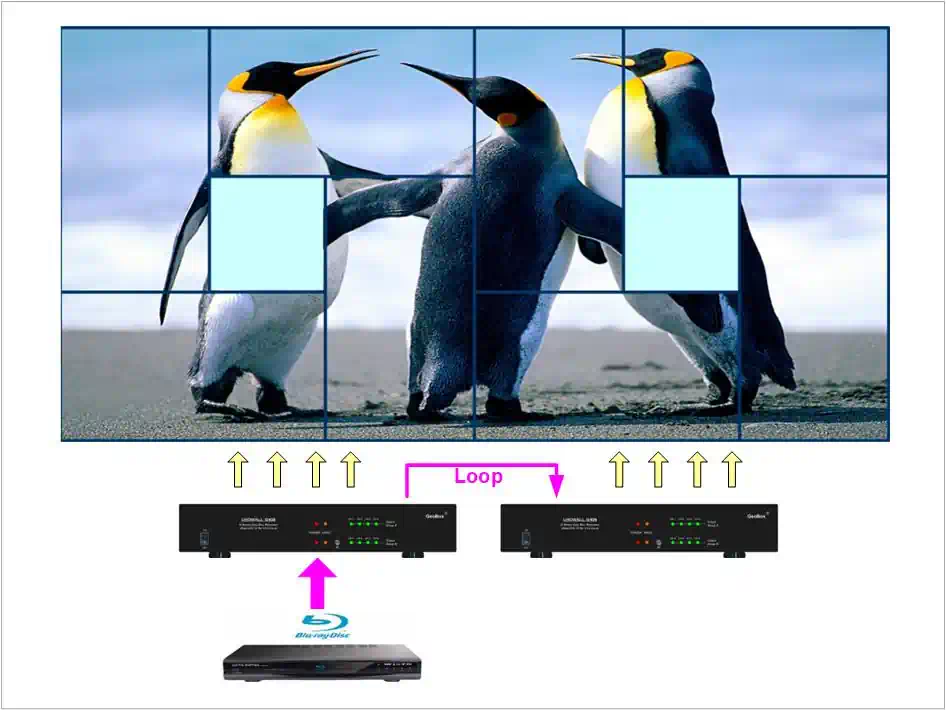

- Hardware: Pure hardware video wall processor; cascade multiple units for large-scale installations.
- Input/Output: Inputs up to 4096×2160@60Hz and 7680×1200@30Hz; outputs up to 2048×1080 or 1920×1200@60Hz.
- Per-channel control: Rotation (90/180/270), flip/mirror, cropping, scaling, and color adjustment.
- Alignment: Pixel-level position ±1800 px H/V; per-edge overlap for projector edge blending (±1800 px).
- Quality: Frame rate conversion, 50Hz in/out, 3:2/2:2 cadence, motion-adaptive de-interlace, high-grade scaling.
- Sync: Frame-Lock for synchronized outputs; one-frame latency at 60Hz (~16.7ms).
- Modes: 18 selectable output presets, programmable EDID, selectable 8/10-bit output depth.
- Color/HDR: HDR input supported (no HDR effect at output), xvYCC processing, embedded HDMI audio per output.
- Control: IR, USB, RS232, Ethernet; quick setup with no computer.
- Reliability: 24/7 operation; CE/FCC/RoHS; 2-year warranty with optional extension up to 5 years.
Who should use the G400
- Teams building mixed-orientation LCD walls, irregular grids, or portrait stacks; environments needing synchronized outputs and low-latency playback; and projects requiring hardware-only deployment with minimal maintenance.
Brand and Support
- VNS G400 is a hardware video wall processor and tv wall controller built for commercial installations. Contact VNS for model selection, multi-unit scaling, and warranty extensions.
Specifications
- Pixel alignment up to ±1800 px
- Edge mask / aspect ratio per edge up ±1800 px
- Non-VESA input timing support
- Embedded HDMI audio in each output.
- Input: HDMI 2.0b; HDCP 2.2/1.4
- Output: HDMI 1.4; HDCP 1.4
- Loop-through: HDMI 2.0b for cascade/daisy chain
- Max input: 4096×2160@60Hz; 7680×1200@30Hz; 4:4:4 chroma
- Output modes: Up to 2048×1200@60Hz; 18 selectable presets
- Latency: ~16.7ms at 60Hz
- Rotation note: At 90/270°, max input 4K/2K 30fps
- ESD: ±15kV air, ±8kV contact
- Power: DC 12V/1.9A (max 22.8W), 100–240 VAC PSU
- Environment: Up to 45°C, 10–90% RH
Setup & Control

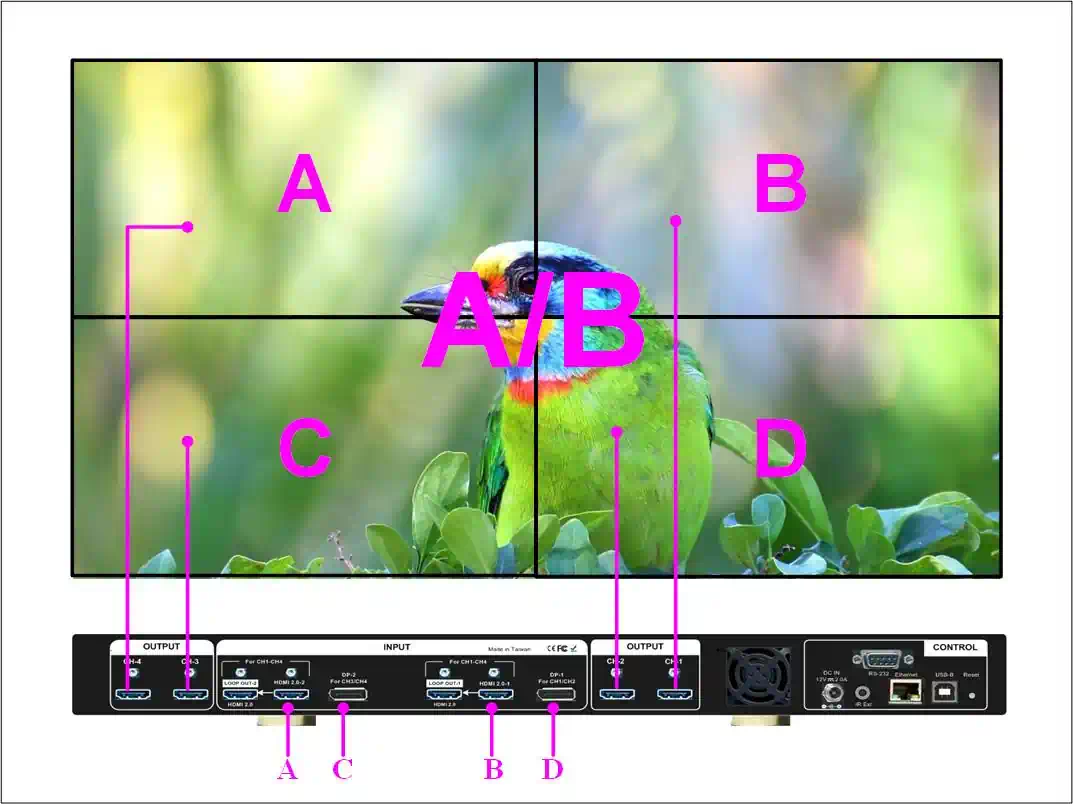

- Connect: Source to HDMI 2.0b input; displays to HDMI 1.4 outputs; use loop-through for cascade.
- Configure: Access IR, USB, RS232, or Ethernet control; apply programmable EDID to match sources.
- Synchronize: Enable Frame-Lock for multi-channel sync.
- Fine-tune: Adjust per-edge overlap for projection blends; set crop, rotation, color per channel.
- Validate: Confirm latency and motion processing meet content requirements.
