M811L WUXGA Warping Box: ultimate video processor for projector

Who it’s for

• AV integrators, projection mapping artists, museum/install teams, rental/staging, control-room displays, and anyone asking how to correct projector chromatic aberration, align warps, and stack images.

What it solves

• Multi‑projector color/lens artifacts, non‑VESA timing mismatches, complex warping on curved or corner walls, synchronized multi‑unit cascades, and flexible PIP/POP overlays for live and installed displays.

Key answers to common questions

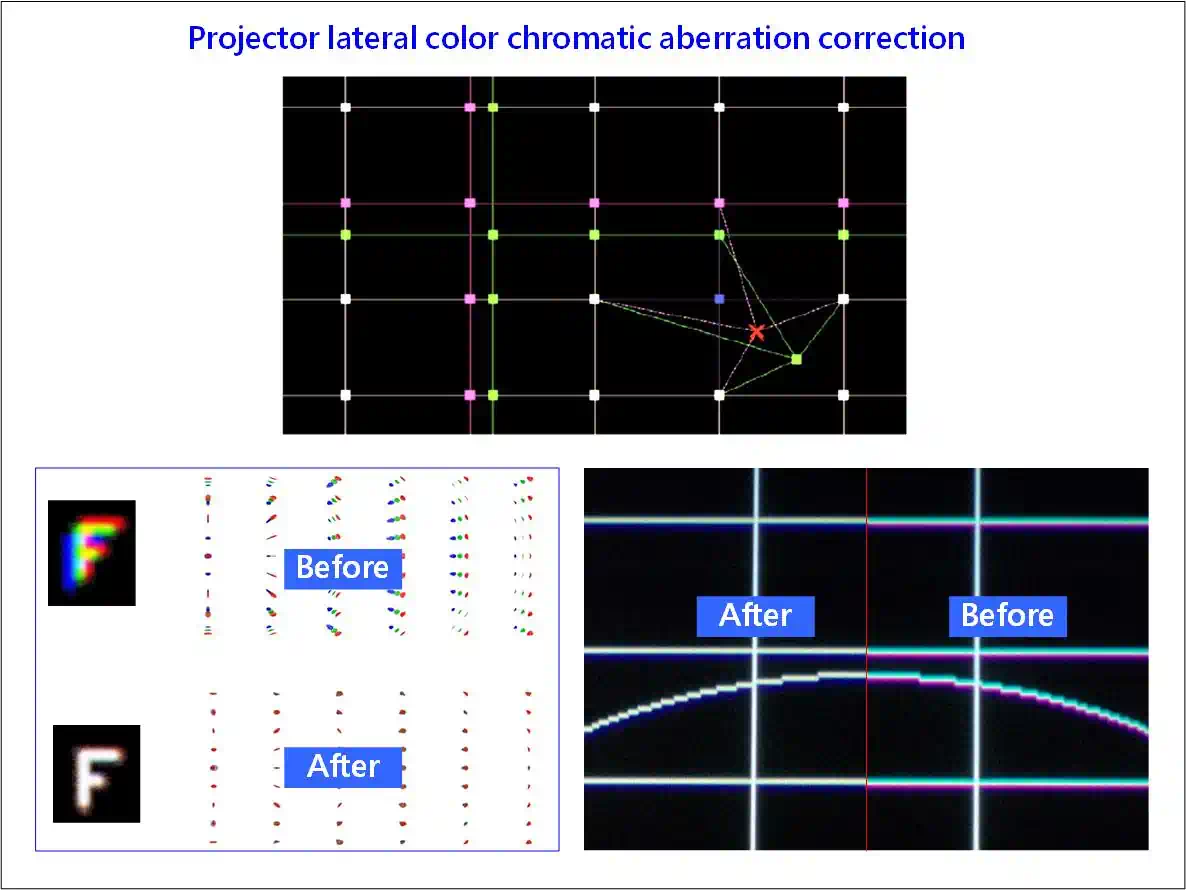

• How to fix lateral color chromatic aberration: Use per‑channel color controls, 10‑bit processing, motion‑adaptive de‑interlace, and fine‑grid geometry tools to align RGB with 1/4‑pixel precision.
• Processor for edge blending and warp: M811L supports advanced warp up to 120×68 fine‑tune points, 17×9 IR/GCT control points, Corner Wall adjustment, and Linearity Grid Line alignment.
• High‑res inputs and loop out: Inputs up to 7680×2160@30Hz and 5760×1200@60Hz (4:4:4, up to 30‑bit color). HDMI 2.0b loop out supports daisy chain and source monitoring.
• Synchronized video wall: Embedded video wall and overlap tools allow split/allocate, crop, shift, and aspect control. Frame lock ensures synchronized outputs across chained units.
• PIP window: PIP from 320×180 up to 1920×1200 with adjustable position and aspect; POP supported. Note: PIP disabled if main image is rotated 90/270 degrees.

Why choose M811L as a video processor for projector

• Precise warp and grid alignment reduce visible color fringing and edge mis‑registration. Non‑VESA timing support and programmable EDID help odd‑format sources work reliably. PIP/POP, rotation, and per‑channel adjustments enable creative layouts without extra gear. Frame lock and HDMI loop out simplify multi‑unit chains for large canvases.

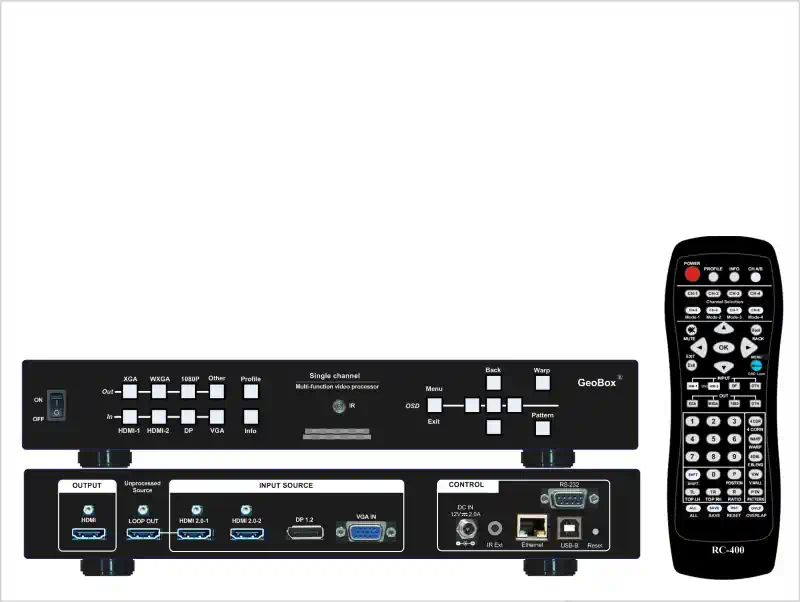

• Input: 2x HDMI 2.0b, 1x DP1.2a and 1x VGA
• Output: 1x HDMI 1.4b
• Loop output: 1x HDMI 2.0b for cascade.
• HDCP compliance: Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3, Output: HDCP V1.4.
• input resolution: 7680*2160 @30Hz, 5760*1200 @60Hz, 4096*2160 @60Hz
• Input supports progressive and interlaced RGB/YUV signal, 4:4:4 Chroma sampling, up to 30 Color bits.
• Support non-VESA standard input timings for easy connection with various signal sources.
• Output up to 2048*1080/60, progressive 4:4:4 RGB, 15 selectable Output resolutions.
• 2 frames system latency: 33ms (@V=60Hz)
• Warp engine for geometry alignment up to 17*9 control points in IR control and GCT PC Tool.
• 120x68 grid pixel position fine-tune. Each control point can be adjusted with 1/4 pixel/step and moved up to 12.5 pixels adjustment range. Maximum adjusting points are 100 points. up to 12.5 pixels adjustment range. Maximum adjusting points are 100 points.
• Geometry adjustment range up to 600 pixels in both H&V directions.
• Support Corner Wall adjustment in H&V at flexible location.
• Support Linearity Grid Line adjustment for quick H&V line position alignment.
• Edge Mask with 8 control points up to 900 pixels at each control point in H&V directions.
• Embedded video wall function for image split, cropping and position adjustment.
• Selectable grid pattern size from 8-120 pixels in H&V direction. Default is 32*32 pixels.
• Selectable grid pattern color with optional transparency to see background image for external pattern.
• Flexible aspect ratio adjustment in each edge up to +_ 1800 pixels position shift.
• 10-bit processor, 3:2/2:2 cadence, low angle smooth algorithm, high quality scaling engine.
• 3D motion adaptive de-interlace.
• Frame lock function to get perfect synchronized outputs while multiple units are cascaded.
• Support xvYCC & 8/10/12-bit deep color processing.
• Individual color adjustment in each processing channel.
• Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment.
• PIP/POP function with PIP image size from 320*180 up to 1920*1200 resolution with flexible position and adjustable aspect ratio. This function is not available when the main image is 90/270 degrees rotation.
• Selectable and programmable EDID in the range: H=1024-3840, V=720-2400.
• User can save up to 5 settings and can be recalled by remote controller, RS232, USB or network.
• ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge)
• Working environment: 40〫C, 10-90% RH
• Control: keypads, IR, RS232, USB, Ethernet
• Power supply: DC: 12V 2A, Max. Power consumption: 12V/0.7A, 8.4W
• Dimensions (Body only): Without protruding parts: 303mm*164mm*44mm.
• Weight (Body only): 1.5kg
• CE/FCC/RoHS Certified
• 2 Year Warranty, paid extension available up to 5 years.
