Projector Edge Blending with UD100 4K Processor

4k Projector Edge Blending Processor

4k Projector Edge Blending Processor
4k Projector Edge Blending Processor
4k Projector Edge Blending Processor
4k Projector Edge Blending Processor
4k Projector Edge Blending Processor
4k Projector Edge Blending Processor
4k Projector Edge Blending Processor
4k Projector Edge Blending Processor
4k Projector Edge Blending Processor
4k Projector Edge Blending Processor
4k Projector Edge Blending Processor
4k Projector Edge Blending Processor
Model：UD100

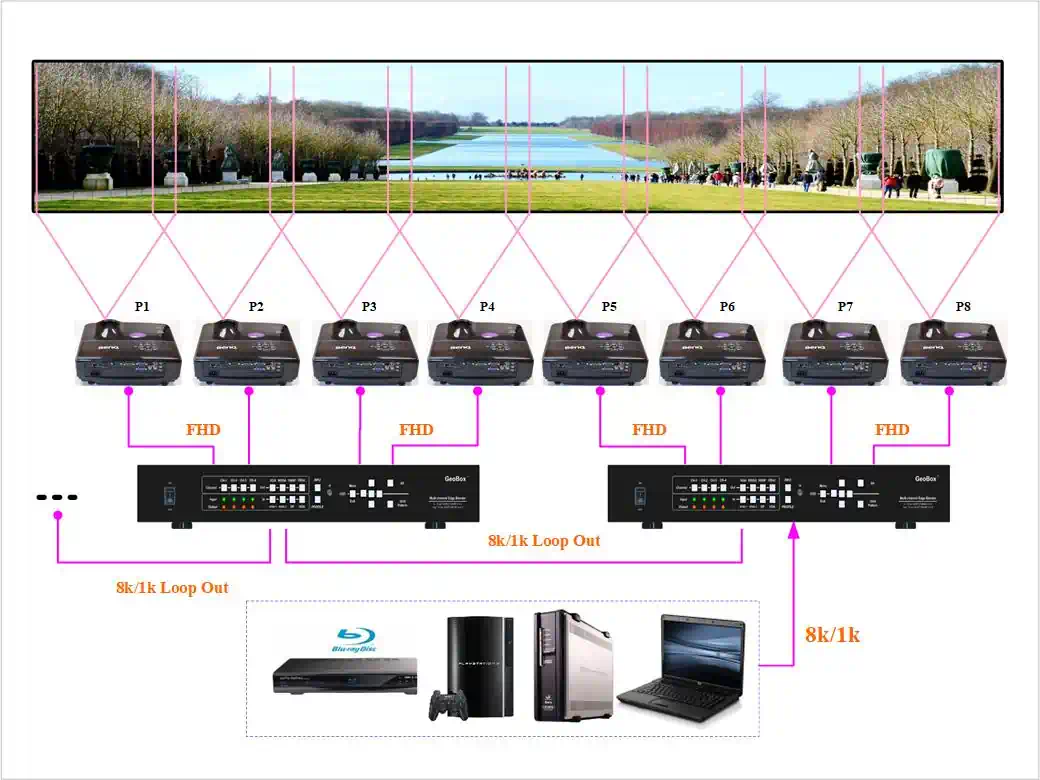

The UD100 supports 4K UHD projector edge blending on flat, curved, and 360° screens, with modular control for up to four projectors. Models UD101–UD104 manage 1–4 units and provide blending, warping, stacking, masking, and MultiViewer. UD104 displays up to 16 contents. All GeoBox units can be cascaded for large displays without a PC. For 5 projectors, combine UD104 + UD101 or UD102 + UD103.
Download Add to inquiry
Detail

UD100 Series: 4K Processor for Projector Edge Blending on Flat, Curved, and 360° Screens

What it addresses

  • This 4K processor handles seamless multi-projector alignment, curved and 360° warping, overlap edge blending, color matching, and flexible multi-window layouts. By using a hardware-based 4K processor, installers can avoid PC complexity while maintaining stable performance and fine image control.

Quick Answers to Common Questions

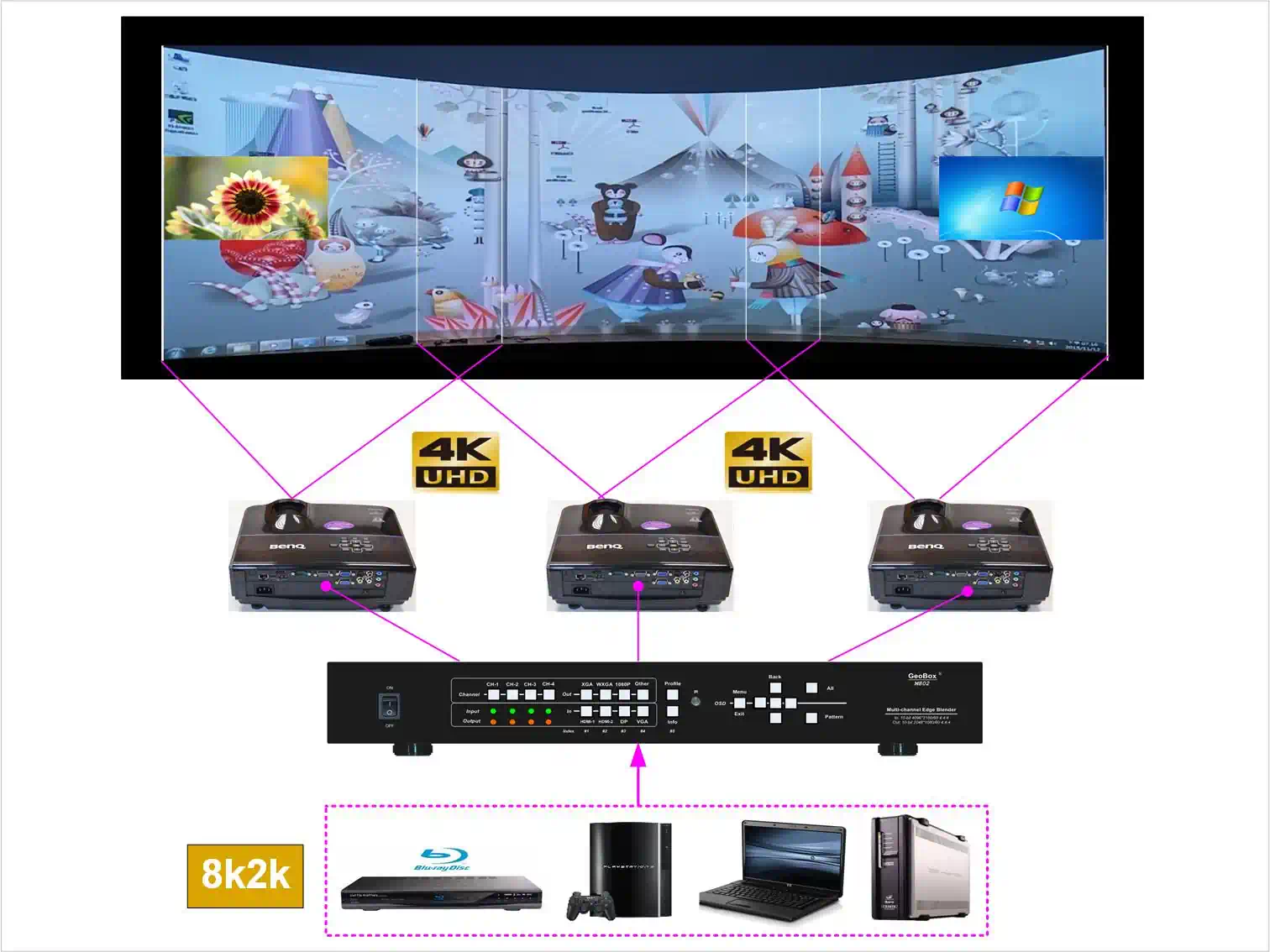

  • How do I blend 2–4 projectors in 4K?  Use the UD102 (2 projectors), UD103 (3 projectors), or UD104 (4 projectors). Each model is a scalable 4K processor built for projector edge blending.
  • Can it handle curved or corner walls?  Yes. The 4K processor supports advanced warp, Linearity Grid Line Adjustment, and Corner Wall mapping for 90° corners and curved screens.
  • What about color and black level?  Each 4K processor provides independent R/G/B gamma control in blend regions, per-output color correction, and 9-region black level uplift to compensate for light leakage.
  • Can I display multiple inputs at the same time?  Yes. This 4K processor supports PIP/POP and 3- or 4-way split views per channel. The UD104 4K processor can show up to 16 independent windows.
  • Do I need a PC to run this 4K processor?  No. The 4K processor is controlled via front keypad, IR, USB, WebGUI, or Ethernet, with HDMI loop-through for daisy-chaining.

Real-World Use Cases

  • Flight or driving simulation: Projector edge blending combines three laser projectors into a seamless, low-latency 4K field of view with frame lock and precise geometry control.
  • Planetarium and dome: Projector edge blending supports curved screens using grid alignment and W-shape corner adjustment for accurate starfield projection.

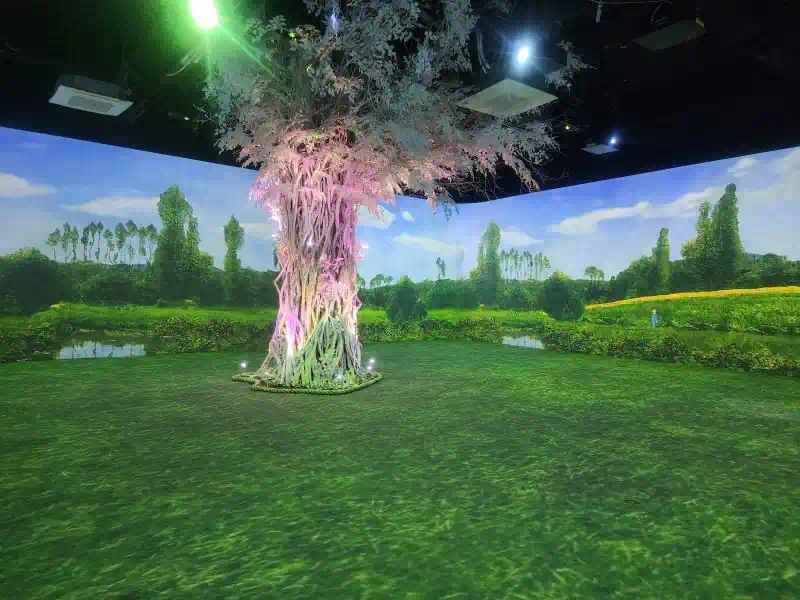

  • 360° immersive events: Projector edge blending with UD104 drives four projectors and up to 16 sources across a continuous 360° display.
  • Museum/video wall: Projector edge blending enables content cropping, rotation, and masking per projector for clean, aligned visuals.
  • Budget projector upgrades: Projector edge blending adds warp and blending to projectors without lens shift or built-in blending.
Specification
  • Each model has 1-4 processing modules.
    • UD101: single processing module
    • UD102: dual processing modules
    • UD103: 3 processing modules
    • UD104: 4 processing modules
  • Each processing module includes:
    • Input: 3x HDMI 2.0b, 1x DP1.4, input can be seamless switching within processing module.
    • Output: 1x HDMI 2.0
    • Loop output: 1x HDMI 2.0b for audio, monitoring and daisy chain connection.
  • HDCP compliance: Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3, Output: HDCP V2.0/V1.4.
  • Max. input resolution: DisplayPort: 7680*4320 @30Hz, HDMI: 7680*2160 @30Hz, 7680*1200 @60Hz, 4096*2400 @50Hz, 4096*2160 @60Hz. Max. pixel clock: 600MHz.
  • Input supports progressive and interlaced RGB/YUV signal, 4:4:4 Chroma sampling, up to 30 Color bits.
  • Support non-VESA standard input timings for easy connection with various signal sources.
  • 24 preset Outputs: up to 4096*2160 @60Hz, progressive 4:4:4 RGB. Max. pixel clock: 600MHz.
  • Support special output timings: FHD/UHD 24Hz, FHU 120Hz, FHD 240Hz, UHD 25 Hz, 3840*2400 60Hz.
  • 1:1 pixel to pixel native image display with original quality.
  • 2 frames system latency: 33ms (@V=60Hz)
  • Warp engine for geometry alignment up to 120x68 control points.
  • Maximum geometry adjustment up to 1200 pixels in both H&V directions for each corner.
  • Support W shape Corner Wall adjustment in H&V directions up to +_1200 pixels.
  • Support Linearity Grid Line adjustment for quick H&V line position alignment. It is good for the line gap adjustment on curved screen display.
  • Edge blending at 4 edges up to H=1920 pixels, V=1200 pixels with independent RGB gamma correction.
  • 9 regions black level uplift to compensate light leakage from projector optical system.
  • Edge Mask following the result of geometry alignment up to 500 pixels.
  • Edge Mask with 8 control points up to 900 pixels (1800 pixels when output resolution is 4k/2k) at each control point in H&V directions.
  • Embedded video wall function for image allocation, split, cropping, edge blending overlap pixel setting and aspect ratio adjustment.
  • Selectable geometry alignment grid size from 8-120 pixels in H direction. Default is 32*32 pixels.
  • Selectable grid pattern color with optional transparency to allow user to apply external test pattern.
  • Flexible aspect ratio adjustment in each edge up to +_ 1800 pixels position shift.
  • OSD menu location is adjustable.
  • 10-bit processor, 3:2/2:2 cadence, low angle smooth algorithm, high quality scaling engine.
  • 3D motion adaptive de-interlace.
  • Passive 3D: Decode 3D input signal into RH/LH eye frame output for passive 3D display.
  • 3D format conversion: Convert Line interleaved, Frame packed 3D signal into Side by Side, Top/Bottom and frame sequential output format for passive 3D and active 3D displays.
  • Frame lock function to get perfect synchronized outputs in multi-unit application.
  • Frame rate conversion and 50Hz in/out function to eliminate image frame drop or repeat.
  • Support xvYCC & 8/10/12-bit deep color processing.
  • Automatically support HDR 10 input signal processing with SDR full color RGB 4:4:4 output.
  • Individual color and white balance adjustment in each processing channel.
  • 90/180/270 rotation, flip, cropping, scaling & color adjustment up to 4k/2k 60Hz input signal. User can do more rotation angle fine-tune through geometry alignment.
  • PIP/POP function with PIP image size from 320*180 up to 1920*1200 resolution with flexible position and adjustable aspect ratio. 2/3/4 split view is integrated within each channel.
  • Selectable and programmable EDID in the range: H=1024-4080, V=720-3840.
  • User can save up to 10 settings and recall by front panel keypads, remote controller, RS232, USB or network.
  • ESD Protection: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
  • Working environment: 45〫C, 10-90% RH
  • Control: keypads, IR, RS232, USB, Ethernet
  • System settings can be stored and backup in PC.
  • CE/FCC/RoHS Certified
  • Power supply: DC 12V 2A-5A
  • 2 Year Warranty, extension package available up to 5 years.
  • Max. Power consumption: UD101: DC 12V/1.1A, 13.2W, UD102: 12V/2.1A, 25.2W, UD103: 12V/3.1A: 37.2W UD104: 12V/4.1A, 49.2W
  • Dimensions and weight (Body only): Without protruding parts: UD101: 303mm*190mm*40mm, 1.2kg, UD102-104: 440mm*190mm*58mm, UD102: 2.5kg, UD103: 2.7kg, UD104: 2.9 kg
