Passive 3D Processor
Model：G812

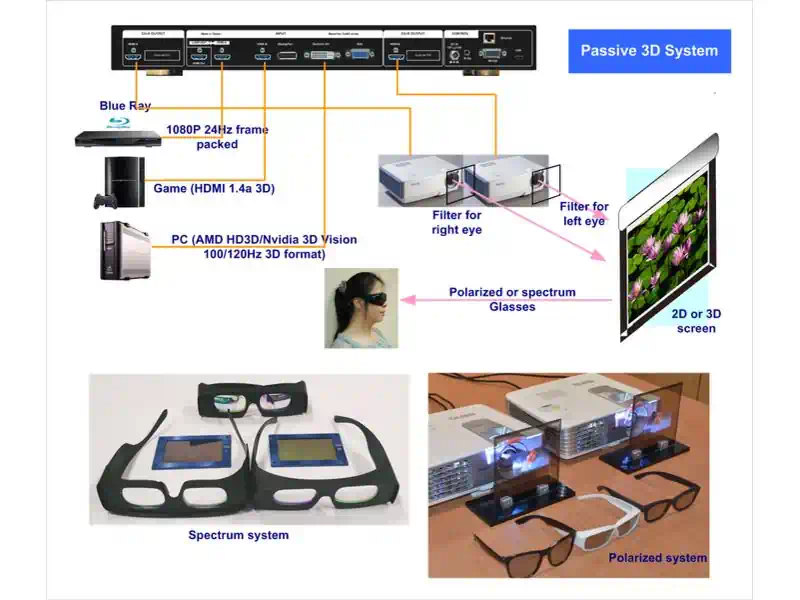

G812 decodes 3D signals from sources such as Blu-ray players, STB, media players, game consoles, and PCs into right/left eye frames for passive 3D display. It outputs separate signals to two projectors, each dedicated to one eye, using polarized filters and matching glasses. A silver 3D screen is recommended to maintain polarization, while Infitec optical spectrum technology also enables 3D display on standard 2D screens.
Download
Add to inquiry
Detail
G812 passive 3D processor decodes Side‑by‑Side, Top/Bottom, Frame Packed, Line Interleaved, and Frame Sequential inputs into Right/Left eye frames for dual‑projector passive 3D processor setups. Each projector displays a single eye, using matched polarized filters and glasses on a silver 3D screen to preserve polarization. Infitec optic spectrum is supported for 3D on standard 2D screens.
Why choose G812
- Scale to 4–6 projectors with edge blending for large, seamless displays without synchronization issues. Enjoy comfortable, flicker‑free viewing compared to active 3D systems.
Setup steps
- Inputs: Connect Blu‑ray, STB, media player, game console, or PC to G812.
- Decoding: Configure RH/LH outputs on the G812 passive 3D processor.
- Projection: Route RH to projector A and LH to projector B.
- Polarization: Install matched polarized filters and supply matching glasses.
- Screen: Use a silver 3D screen; or Infitec on a standard screen.

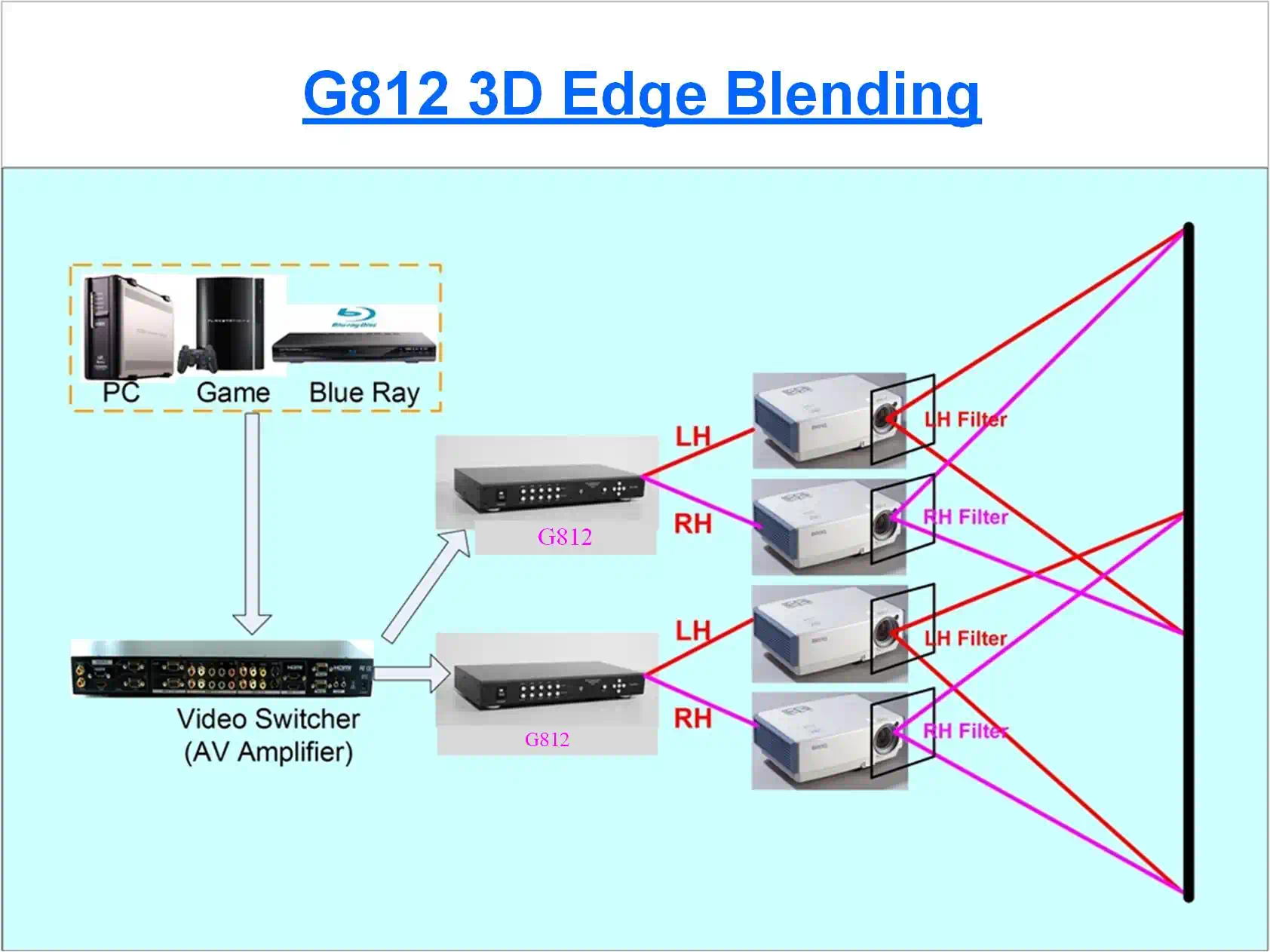

- Scaling: For large venues, deploy 4–6 projectors with edge blending.
Key features
- Format coverage: SBS, Top/Bottom, Frame Packed, Line Interleaved, Frame Sequential to RH/LH.
- Display method: Dual‑projector passive 3D with polarized filters and glasses.
- Screen support: Silver 3D; Infitec for normal screens.
- Scalability: 4–6 projectors with edge blending; no sync issues.
- Comfort: Flicker‑free passive viewing.
