Model：G901
G901 is a 3D processor for format conversion and decoding, supporting passive and active 3D displays. It handles medical formats like line-by-line, interleaved, and dual camera, converting them to side-by-side, top/bottom, or frame sequential output. Built-in features include seamless switching, scaling, flip/rotation/cropping, video wall, PIP/POP, multi-viewer, and 3D processing. Inputs support PC, Blu-ray, game consoles, and medical endoscopes.
Download Add to inquiry
Detail

Use the G901 3D format converter to ingest Side by Side, Top/Bottom, Frame packed, Line interleaved, Frame sequential, and dual‑camera RH/LH inputs, then output Side by Side, Top/Bottom, or frame‑sequential for passive or active 3D displays.

Who it’s for

  • AV integrators building multi‑display 3D setups
  • Medical imaging teams using dual‑camera RH/LH feeds
  • Museums, attractions, and event venues needing seamless switching
  • Simulation and training environments requiring frame‑sequential output

Key use cases

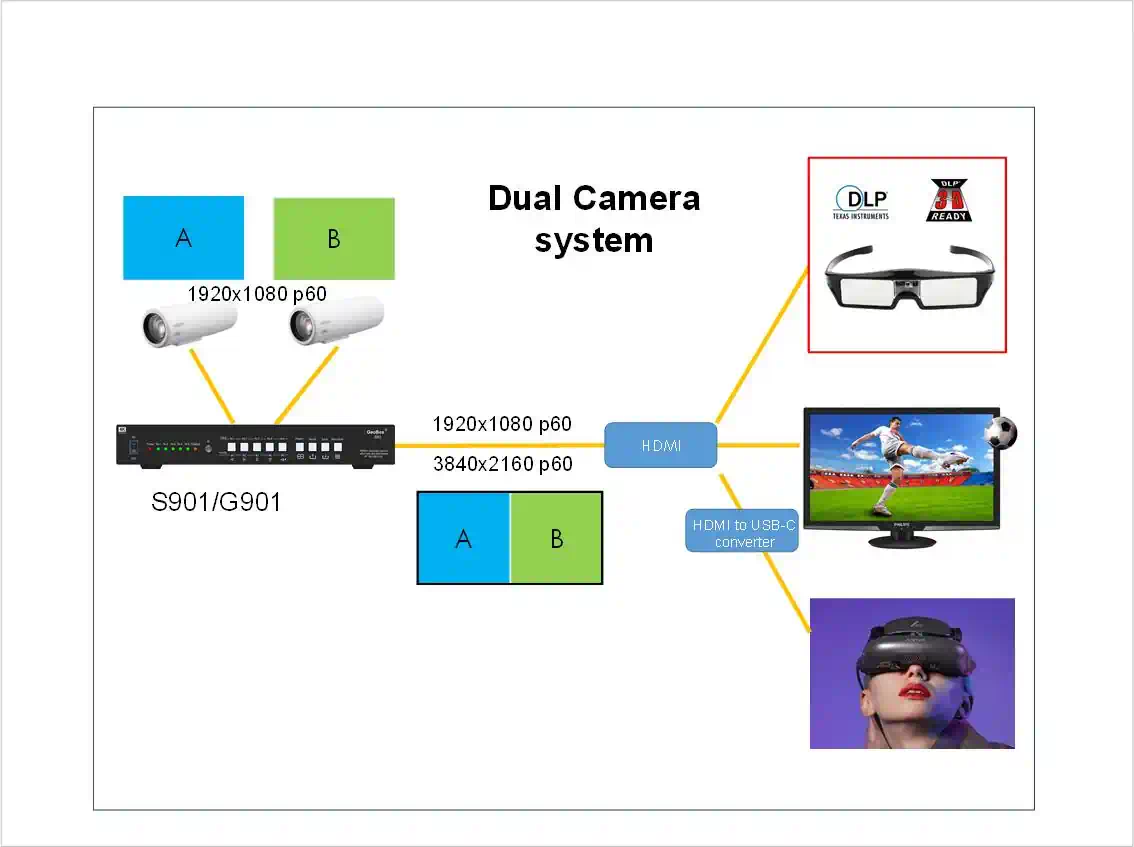

  • Medical endoscopy: Convert dual‑camera RH/LH or line‑interleaved feeds into Side by Side or Top/Bottom for passive 3D monitors.
  • Events and live shows: 5×1 seamless switching to maintain continuous projector output.
  • Simulation/training: Frame‑sequential output with selectable refresh rates (60/100/120 Hz).
  • Museums/attractions: 3‑split and 4‑split multi‑viewer layouts on UHD displays with independent rotation/flip.
  • Pro AV workflows: Scale, crop, rotate, and color‑adjust up to 4K/60 inputs; merge discrete RH/LH into Side by Side/Top/Bottom.

Why G901

  • Comprehensive 3D format converter coverage for passive and active 3D ecosystems
  • Handles medical dual‑camera RH/LH and line‑interleaved formats used in hospital imaging
  • Built‑in seamless switching and multi‑viewer reduce external gear and workflow complexity
  • Fine‑grained output timing and 10‑bit pipeline preserve image fidelity
Specifications
  • Input ports: 3x HDMI 2.0b, 2x DP1.4
  • input: 4096*2160 @60fps or 7680*2160 @30fps in HDMI and 7680*4320 @30Hz (true 8k/4k @30Hz) in DisplayPort input.
  • Supports interleaved and progressive input signals with 4:4:4 10-bit color
  • Programmable Output: 1x HDMI 2.0b up to 4096*2267@60fps or 7680*1234 @60fps
  • The output range is from 800-7680 in horizontal (8 pixel/step under 230Mhz, 16 pixel/step above 230Mhz) and 600-3840 in vertical (1 pixel/step) (maximum resolution is 600MHz).
  • Output signal: SDR, progressive full color RGB 4:4:4 10-bits.
  • Preset 17 output timing modes with 8-bit/10-bit color and 24/30/50/60/100/120Hz refresh rate selection.
  • HDCP: V2.2/V1.4 in HDMI & V2.2 in DP ports.
  • One frame latency: 16.7ms (V=60Hz)
  • PIP/POP function with PIP image size from 320*180 up to 1920*1200 resolution with flexible position, rotation/flip and selectable aspect ratio.
  • POP image can be at side by side or Top/Bottom. Main and sub-image can be rotated / flipped with flexible aspect ratio adjustment.
  • 5x1 seamless switching with continuous output signal. Projector needn’t re-search input source.

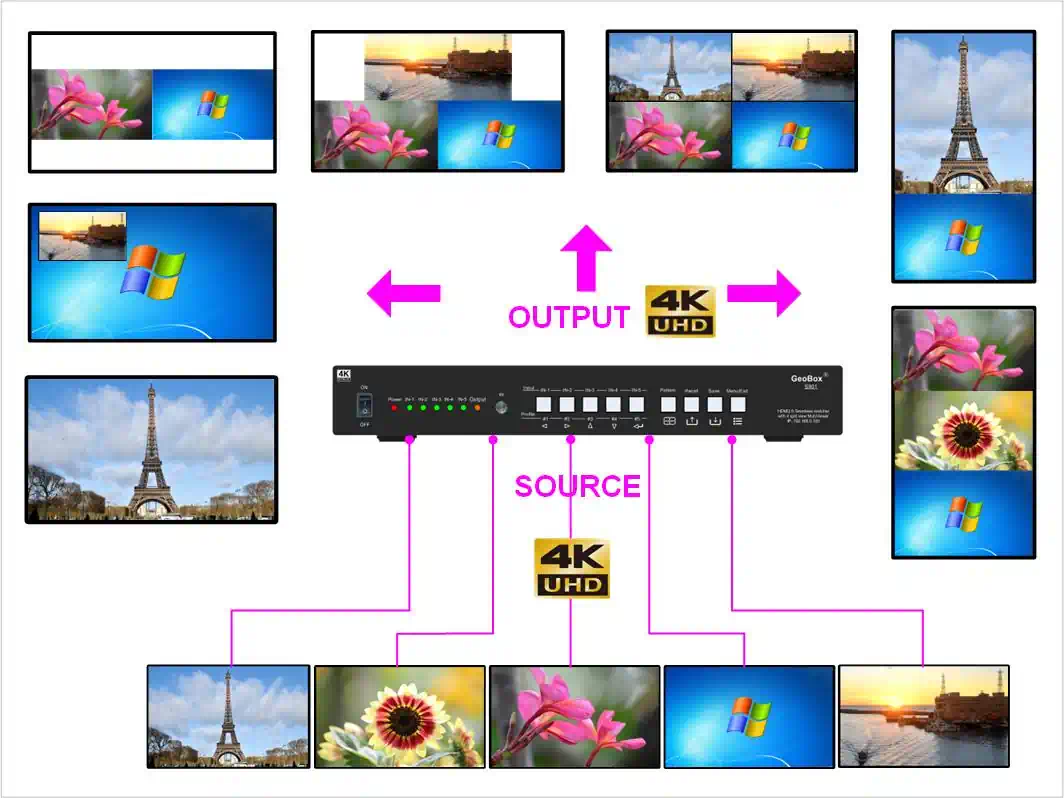

  • One G901 can display 4 types of 3 split views on landscape or portrait UHD monitor. 2 types of 4 split views can be displayed in landscape monitor. All inputs can be up to 4k/2k 60Hz.
  • 3x SBS split view with the center image size from 1/6 to 5/6 adjustable.
  • Individual color adjustment in main and sub-images.
  • 10-bit processor, 3:2/2:2 cadence, low angle smooth algorithm
  • High quality scaling engine for image scaling up and down in the range from XGA to UHD.
  • 3D motion adaptive de-interlace for interleaved input.
  • Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment up to 4k/60 input.
  • Decode 3D signal for passive 3D display.

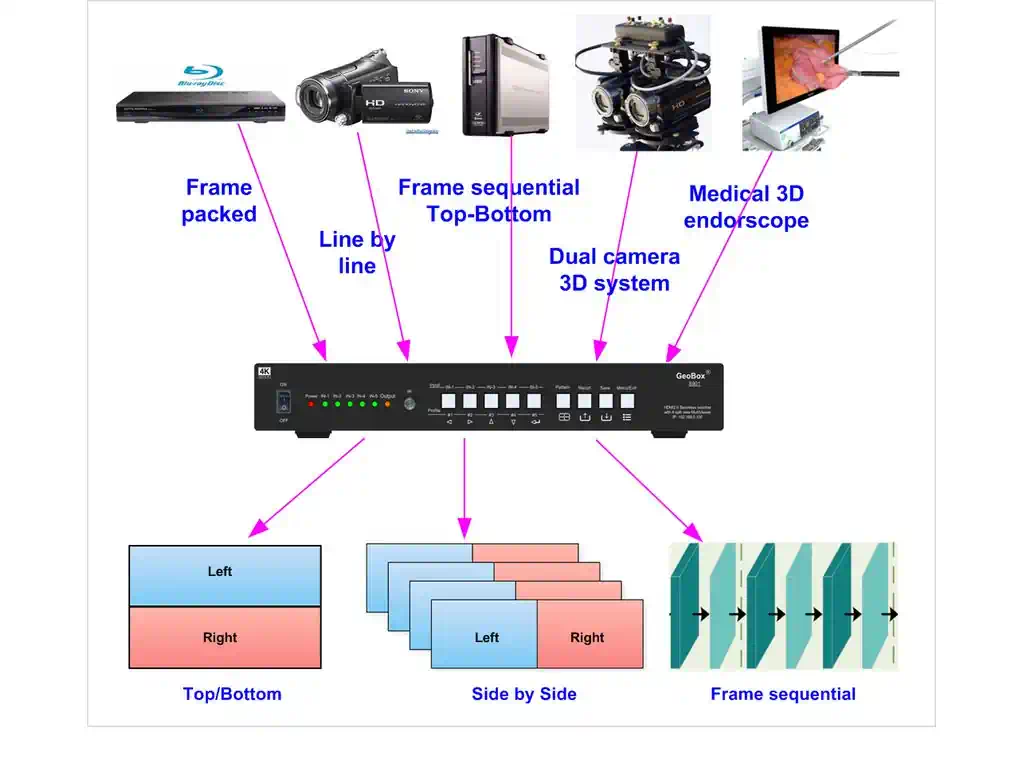

  • Convert Side by Side, discrete dual camera RH/LH, Top/Bottom, Frame packed, Line interleaved and Frame sequential 3D formats into side by side, Top/Bottom or frame sequential output.
  • Image freeze by click keypad on remote controller.
  • ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge)
  • DC power supply: DC adapter: 12V 2A (100V-240V), max. Power consumption: 0.6A (7.2w)
  • Working environment: 45 degree C, 10-90% RH
  • Control: IR, RS232, USB, Ethernet
  • 10 system settings can be stored and backup.
  • Dimensions (Body only): 220mm*161mm*41mm (without protruding parts).
  • Weight: 0.87 kg (body only)
  • CE/FCC/RoHS Certified
  • 2 Year Warranty, extension package is available up to 5 years.
